您當前的位置：首頁產品中心Dwyer 差壓變送器 616WL系列
Low Ranges Down to 0.25

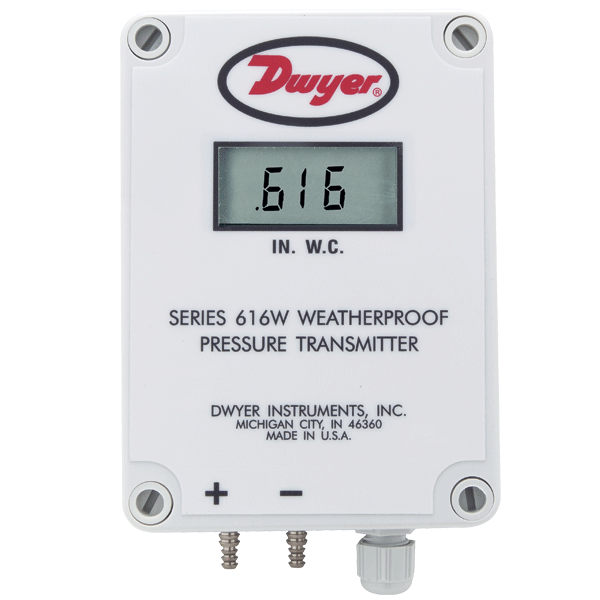

616WL系列差壓變送器能感知空氣和不可燃兼容氣體的極低壓力，并發送標準的4-20 mA輸出信號。所有型號，包括那些具有3位LCD數字讀出，工廠校準到具體范圍如下表所列。
正、負和差壓的測量精度可達±0.50%。這個防風雨單元是封閉在聚碳酸酯外殼，設計滿足(IP66/NEMA 4X)。內部數字按鈕零位和跨度允許快速和簡單的現場校準。
應用及案例
● Low pressure applications
● Outdoor HVAC
● Dust collection
● Roof-top equipment
產品特色
● NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
● Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
● Zero and span controls provides easy calibration checks and shorter installation time to get device running and monitoring
● High precision accuracy at low pressure ranges provides exceptional accuracy for insuring tight-control and minimizing costly out of specification conditions
