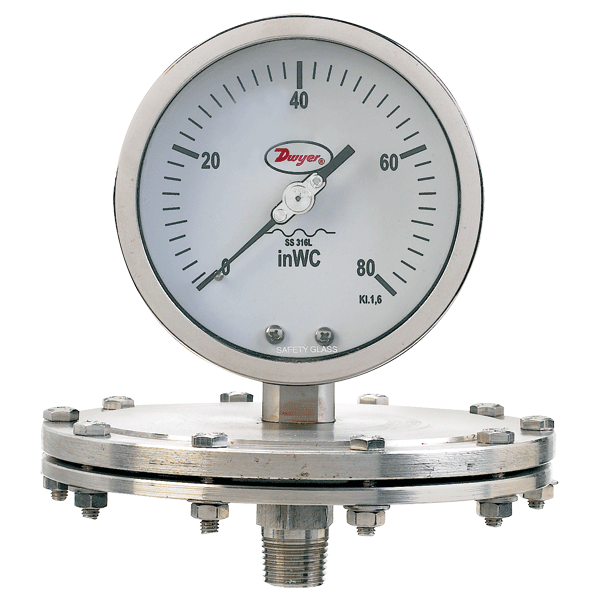

Dwyer SGP系列

1.6% Full Scale Accuracy, 316, 316L SS & PTFE Wetted Parts

SGP系列壓力表有雙英制/公制量程，滿量程精度為±1.6%。SGP系列壓力表采用304不銹鋼外殼，316L不銹鋼腔和316不銹鋼膜片，具有良好的化學兼容性。單位可以承受環境溫度高達149°F(65°C)和工藝溫度高達248°F(120°C)。真空，復合和壓力范圍235“w.c.是可提供的。

應用及案例

● Chemical

● Refinery

● Fertilizer

● Petrochemical

● Power

● Pharmaceutical

● Pulp and Paper

● Cement

產品特色技術指標選項配件安裝手冊機構認證尺寸詳圖產品大圖型號列表訂貨選型

產品特色

● Stainless steel housing and wetted parts resist ambient corrosion for longer service life in harsh environments

● Wetted parts permit use in chemical applications

● High accuracy gage for applications requiring more precise measurement

● Models that support vacuum to higher pressure ranges provide a selection to meet specific applications

● Specified with high ambient and process temperature ratings mean more robust uses and longer service-life
