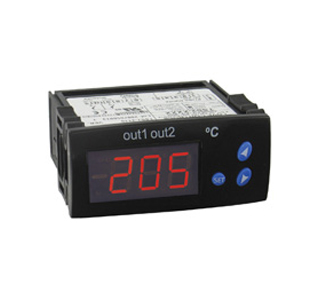

Dwyer 雙輸出數顯溫度開關 TSS2系列

TSS2系列雙輸出數顯溫度開關用于控制加熱系統或冷卻系統的溫度。他采用了兩路輸入信號和獨立的繼電器輸出組成雙路系統。TSS2系列有34種可編程配置的參數來實現多種功能。除了設定點外，需要安全密碼才能配置參數。溫度探頭需另外購買。

兩個獨立的觸點輸出，加熱或冷卻控制

產品特色性能指標選項配件安裝手冊機構認證尺寸詳圖產品大圖型號列表視頻演示相似推薦

Probe Range: -58 To 302°F (-50 To 150°C).

Input: PTC Thermistor (1000Ω @ 25°C).

Outputs: One 16A SPDT Relay @ 250 VAC, Resistive; One 8A SPDT Relay @ 250 VAC Resistive.

Horsepower Rating (HP): 1 HP.

Power Requirements: 12 VAC/DC, 24 VAC/DC, 115 VAC, 230 VAC Depending On Model.

Accuracy: 1% Of Full Scale.

Display: 3-Digit And Sign, Red LED.

Resolution: 0.1° (<100°); 1° (≥100°).

Memory Backup: Nonvolatile Memory.

Ambient Operating Temperature: 32 To 158°F (0 To 70°C).

Storage Temperature: -4 To 176°F (-20 To 80°C).

Dimensions: 3 X 1-27/64 X 2-7/16 In.

Front Panel Rating: IP64.

Weight: 2.3 Oz (65 G).

Agency Approvals: CE, cURus.
